Protocol Termination & Data Flow

Hardware-Isolated Protocol Stacks

Protoplatz terminates multiple wireless and wired protocols concurrently within the gateway. Each protocol stack (Zigbee / Thread, LoRa / LoRaWAN, Wi-Fi / BLE, Cellular LTE, Modbus RTU, Ethernet with TSN) operates on dedicated protocol hardware and does not share execution context or memory with other stacks.

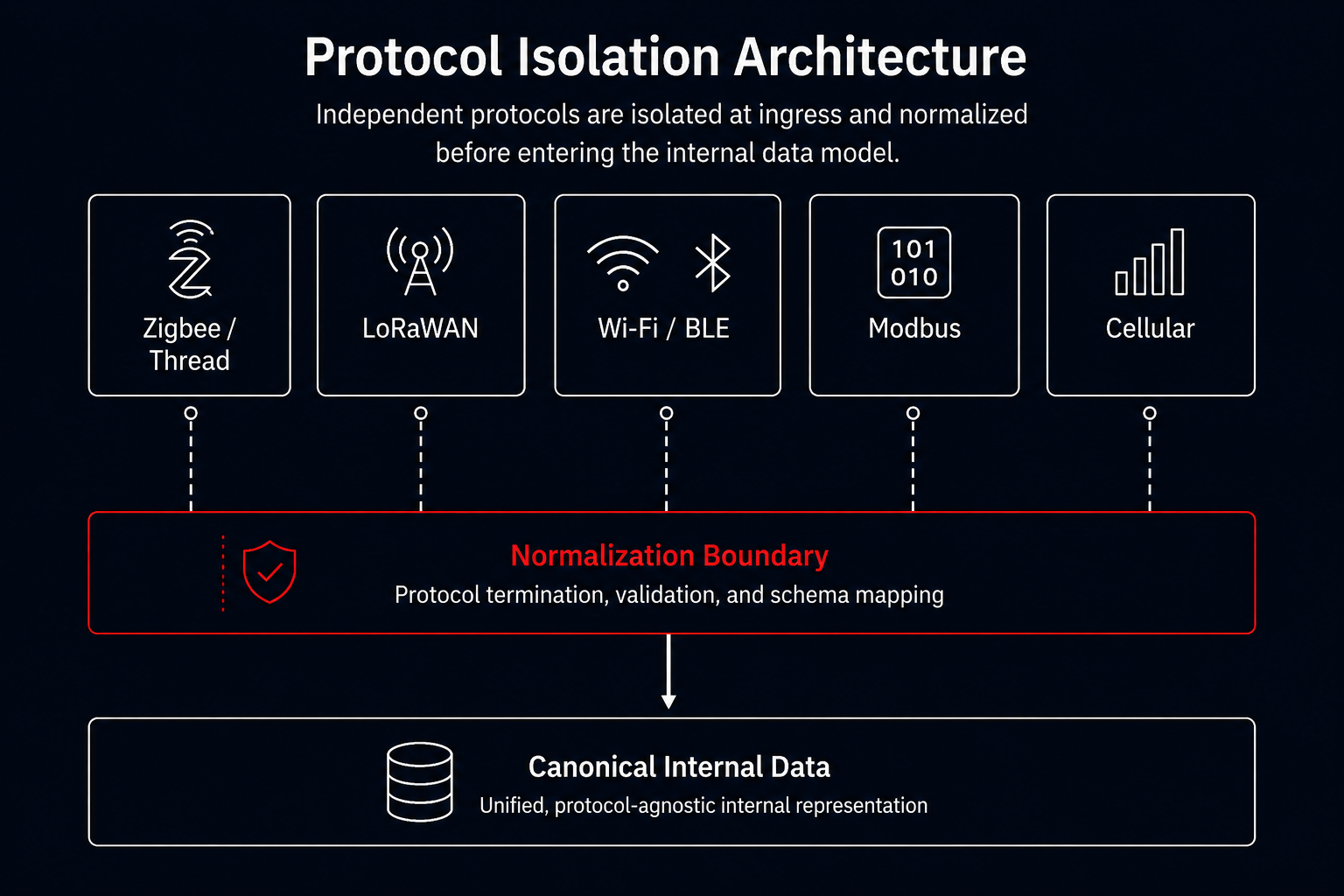

Diagram 07 — Protocol Isolation Architecture
Diagram 07: Protocol Isolation Architecture

Device Data Flow

Incoming device data follows a fixed execution path:

  1. RF or wired ingress
  2. Protocol-specific decoding
  3. Validation and integrity checks
  4. Transfer to middleware normalization layer

No device data is forwarded directly to applications or intelligence layers without passing through normalization.

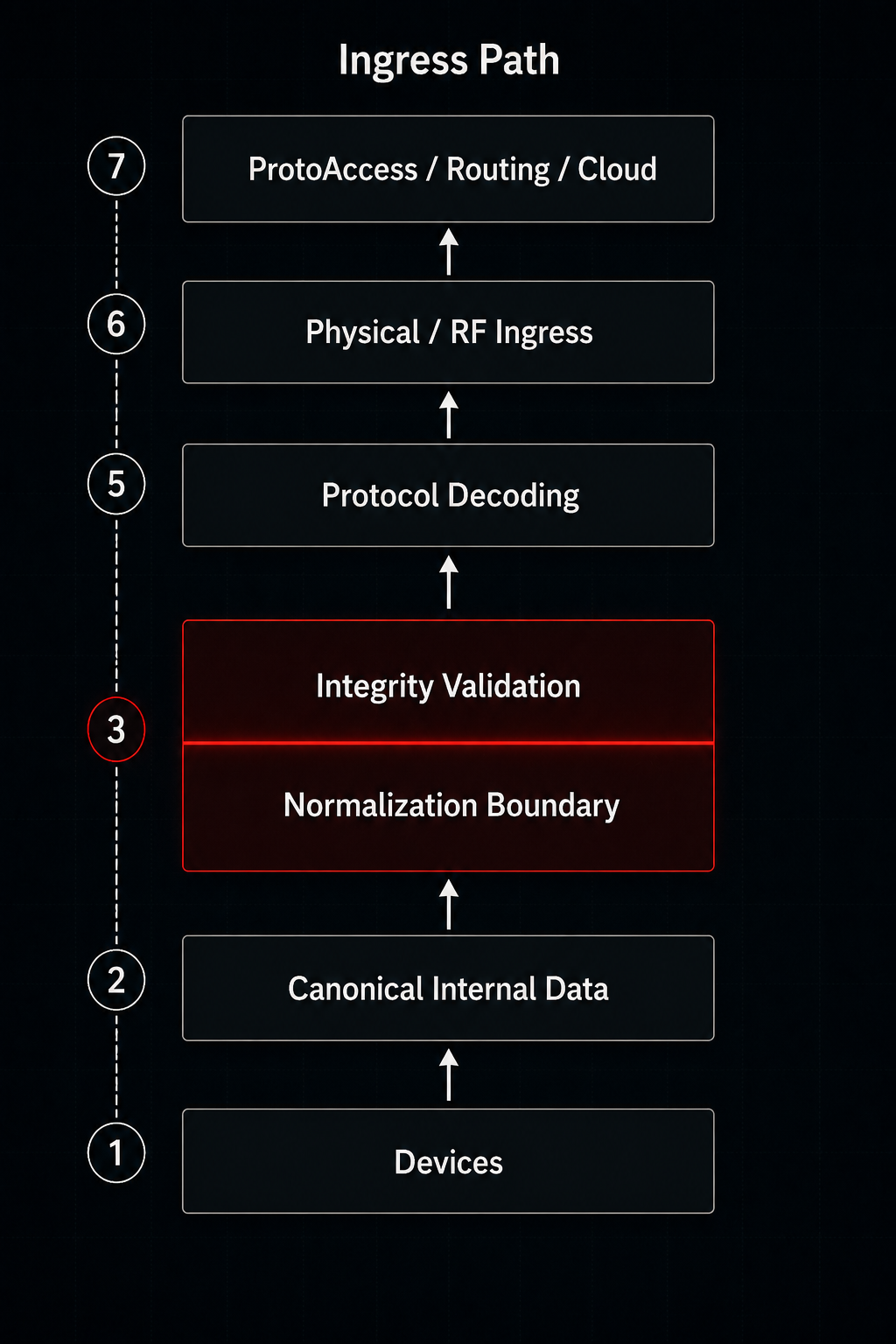

Diagram 08 — Ingress Path
Diagram 08: Ingress Path
